KSF-2 Koi Pond Model

Need a dependable outdoor automatic feeder to feed your koi pond (or other similar situations)?

The original Super Feeder® by Super-Feed Enterprise® is serviceable for years to come! It has been manufactured in USA and sold globally since 1993! It's the most versatile and multi-purpose outdoor automatic koi pond feeder you will find!

Outdoor Koi Pond KSF-2 Model Features:

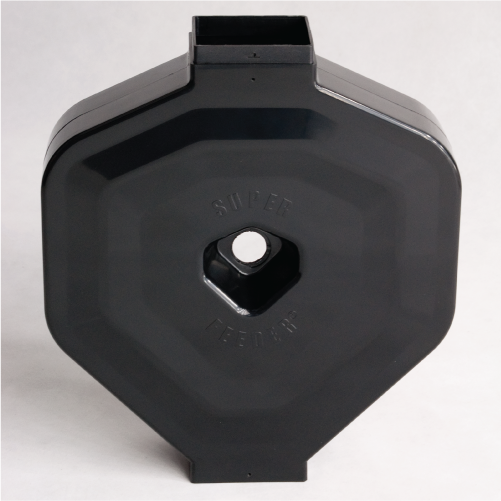

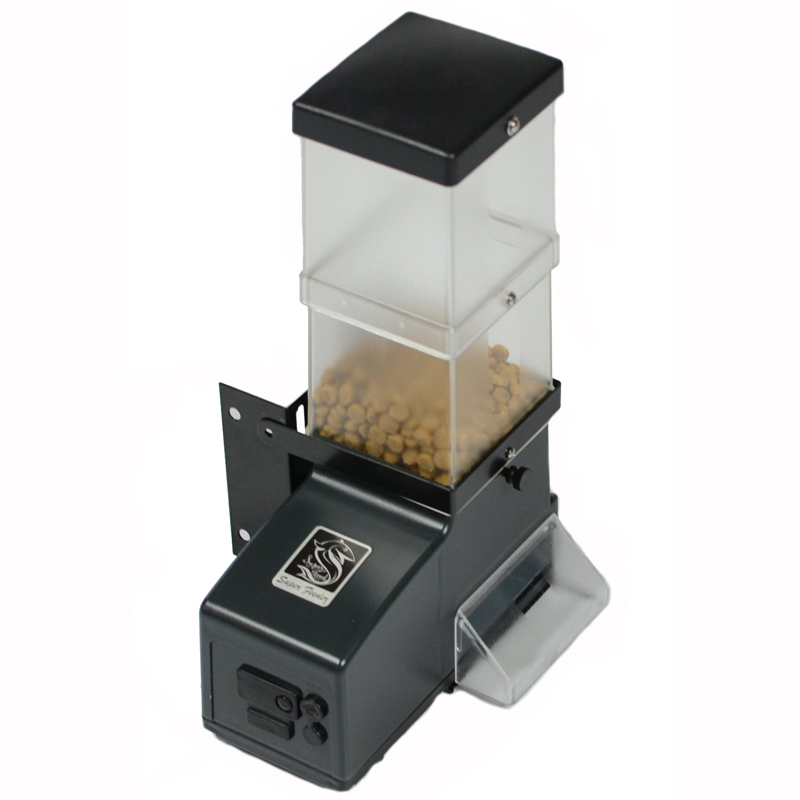

You can purchase items separately or you can purchase one of our combo deals. Here is a visual breakdown of the Super Feeder components. First there is the basic Super Feeder unit. Ideas on mounting options can be found below. You can choose to add an optional hopper for more storage. Then choose your controller. You can use your choice of ourdoor timer or outdoor wi-fi plug to control your automatic feeder from your phone. You can purchase these from us or you can use any timer or smart plug that you already own.

See below for ideas of how our customers have modified the Super Feeder to fit their unique needs!

Built for Durability & Indoor/ Outdoor Use

All Super Feeder models are constructed from thick, high-impact acrylic and polycarbonate plastics, rugged polypropylene internal components, and stainless-steel hardware for long-lasting reliability. The heavy-duty materials resist condensation, stand up to harsh conditions, and are designed to be highly resistant to animal interference.

Every component is replaceable and readily available, making maintenance simple should you ever need it. Super Feeders are extremely weather-resistant and suitable for virtually any indoor or outdoor feeding application.

Flexible Power & Control Options

The simplest way to operate your Super Feeder is with any inexpensive plug-in timer or Wi-Fi smart plug (included in combo deals). Unlike cloud-based systems, the feeder itself does not require Wi-Fi, apps, or subscriptions to operate. The timer simply powers and triggers the feeder at your scheduled times.

For outdoor installations, all KSF-2 models and CSF-3 Outdoor models include the necessary low-voltage wire. The feeder can also be connected directly to a 12-volt landscape lighting transformer or a sprinkler system timer supplying 24VAC, allowing it to function similarly to a sprinkler “zone” valve.

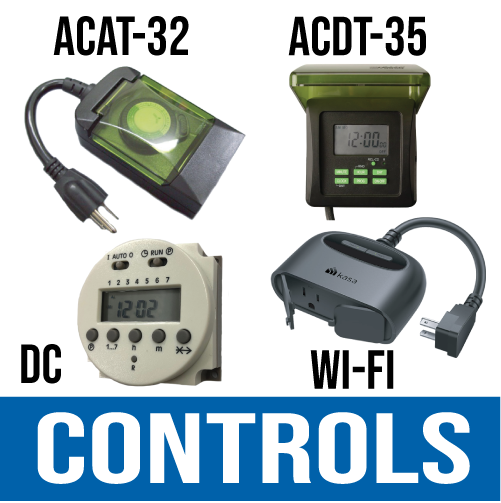

For advanced automation, a home automation system such as an X-10™ setup can also be used. If you do not already own a timer, Wi-Fi plug, or timer/transformer, we stock a wide selection of digital, analog and DC timers, as well as Wi-Fi smart plugs to match your setup.

Optional 12-Volt Battery Operation

For locations without access to standard 120VAC power, such as remote ponds, a 12-volt DC timer system is available. Super Feeders are already designed to operate on either 9-24VDC or AC power. To run the feeder from battery power, you will only need: wire, a 12-volt battery and one of our compatible DC timers. Because the feeder uses very little power and is only energized during feeding cycles, a solar charger is often unnecessary. Many users simply recharge the battery occasionally as needed. The 7-Day Digital Timer (DT-01) must be mounted inside a weatherproof enclosure, or you can choose the DT-03 Outdoor Metal Box Timer, which comes ready for outdoor installation. Other DC timers are also available for users requiring more daily feeding cycles.

Feeding Cycles & Precise Food Output Control

Hop on over to the Features page that gives lots of details on this which applies to all models.

Included Items

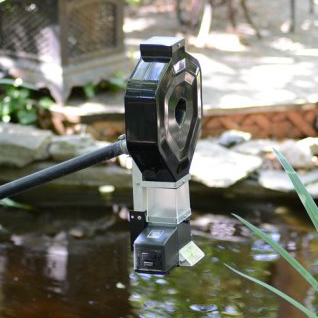

KSF-2 Outdoor Koi Pond Model: “Basic” package includes Super Feeder housing unit, two 2-cup clear hopper extensions (for a total feeder capacity of 4-3/4 cups), lid, chute cover, powder coated black metal mounting bracket and tie strap, outdoor power adapter kit (which includes: 6ft cord w/ coax plug, 30’ long wire & coaxial plug-to-wire adapter), hardware bag, and printed operating manual. The KSF-2XL model includes a 1.5 gallon black hopper (24 cups capacity) to stack on top of the basic KSF-2 Super Feeder (for a total feeder capacity of 28-3/4 cups).

Combo Packages for the KSF-2 Model

There are many combination packages to fit your custom needs. We have paired up the basic feeder package with the most popular accessories with different choice of controls into combo packages at a discounted price. See our combo page here on this website to help you pick the deal that is right for you. You can shop our KSF-2 Koi Pond combo page on our online store after you choose.

Installation Ideas

See the Super Feeder Installation page for general installation instructions including how to videos.The KSF-2 model comes with a black powder-coated metal "L" shaped mounting bracket and one metal strap. There are various ways to mount your KSF-2 Koi Pond Super Feeder. To see some custom customer mountings, see our KSF-1 Custom Installation page. Here are some link to the of the most popular mounting. These links are also included in the sections below and from the custom installation page. This feeder can also be easily adapted to feed caged animal like rabbits, guinea pigs, birds, etc...by placing the feeder outside the cage and setting up a guttering system to deliver the food.

Swivel pipe mount hang

Attaching Bracket to pipe information

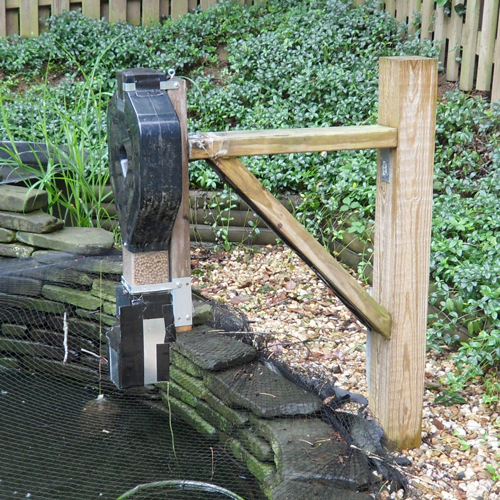

Mounting to 2x4 type setup

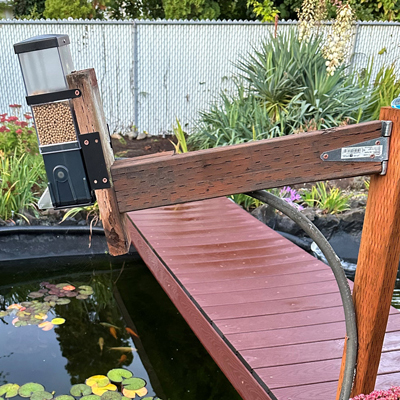

Swing Arm Mounting Installations

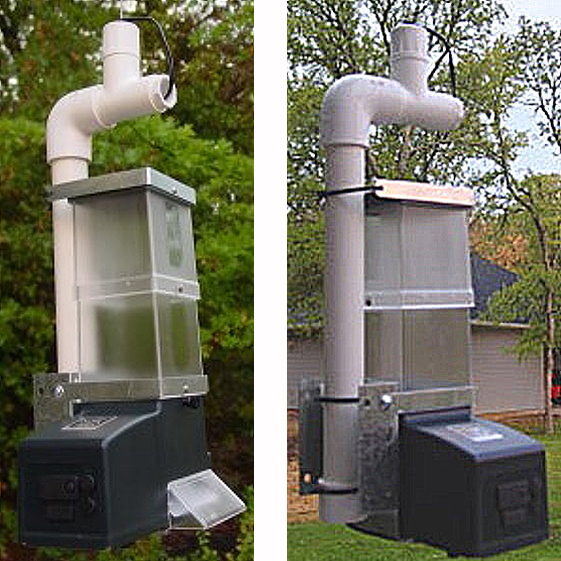

Hang Mounting Installations

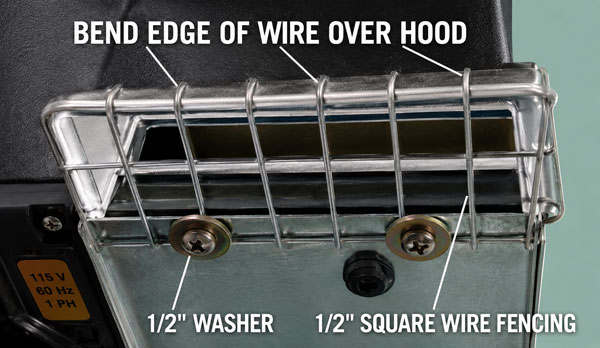

Raccoon Problem?

If you think animals like raccoons may be able to put their paws into the chute underneath the hood on the KSF-2, you may use the following technique below to keep that from happening. It's very effective, easy to do, and the pellets will still go through

Accessories

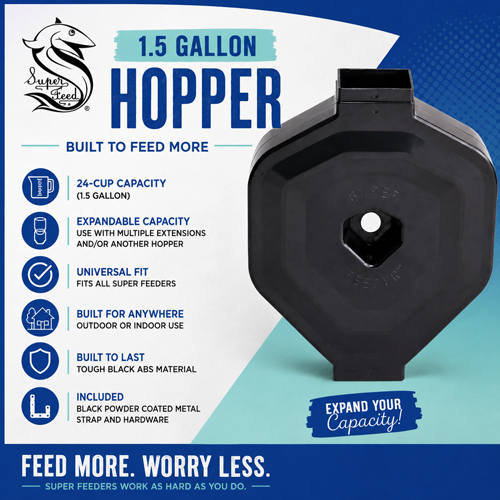

There are many accessories you can purchase for your Super Feeder which can be found on our accessories page like extra extensions or the 1.5 gallon hopper both for more food capacity.

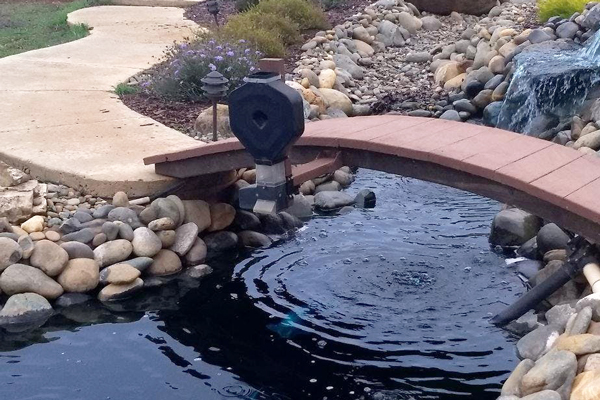

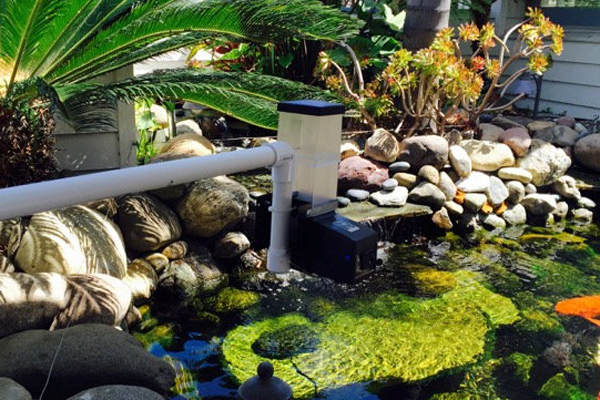

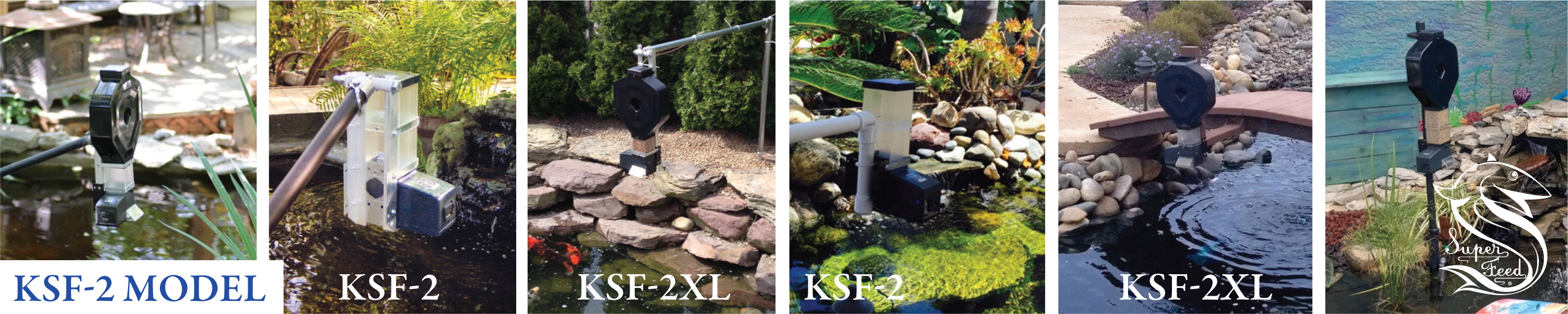

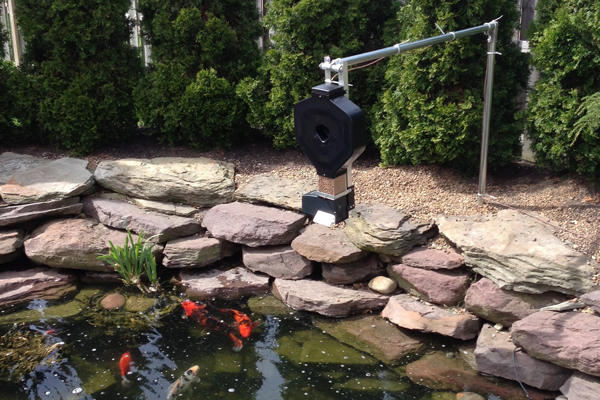

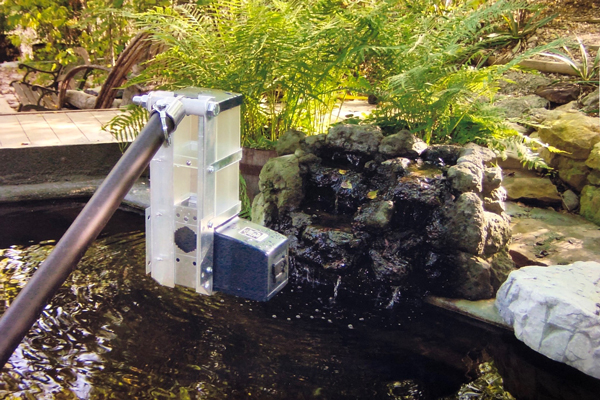

Examples of Customer Installations of KSF-2 Model

We have many photos of customer installations (and some instructions) of their KSF-2: Outdoor Koi Installations

Download the Super Feeder Manual
