Low Voltage Timer Instructions for DC Timers

Below the video are the printed instructions for: DT-01/ DT-02/ DT-03/05/06/07 Hook-up


Detailed video showing set-up/ operation instructions for DT-01/ DT-02/ DT-03/05/06/07


Download the pdf version

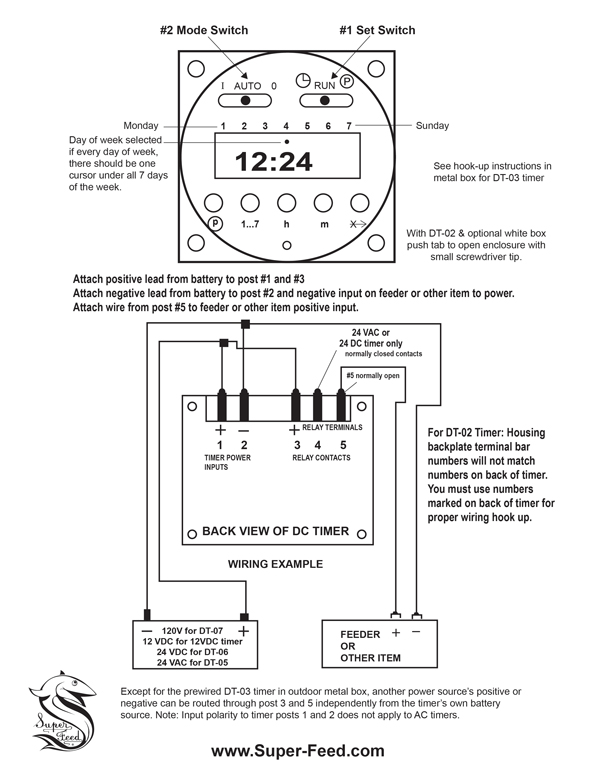

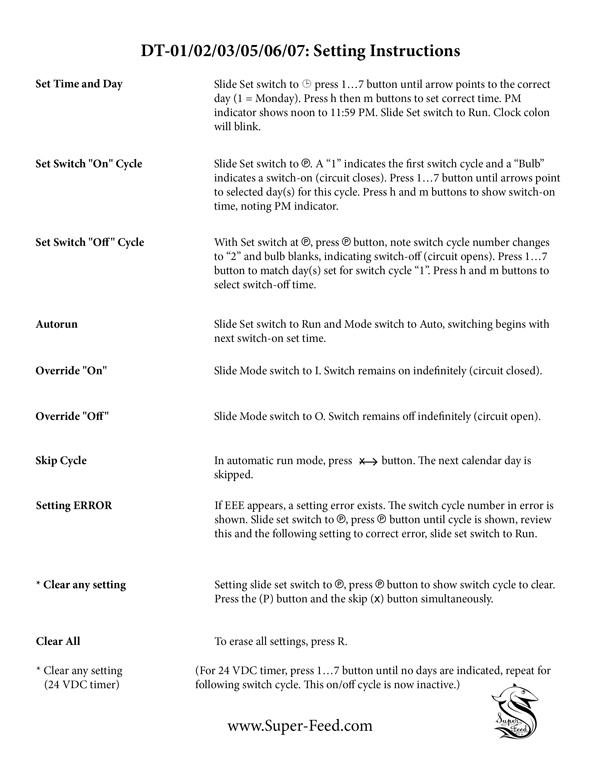

DT-01 Timer Setting Instructions - Also for DT-02, 03, 05, 06 and 07 DT-01 Timer Setting Instructions - Also for DT-02, 03, 05, 06 and 07

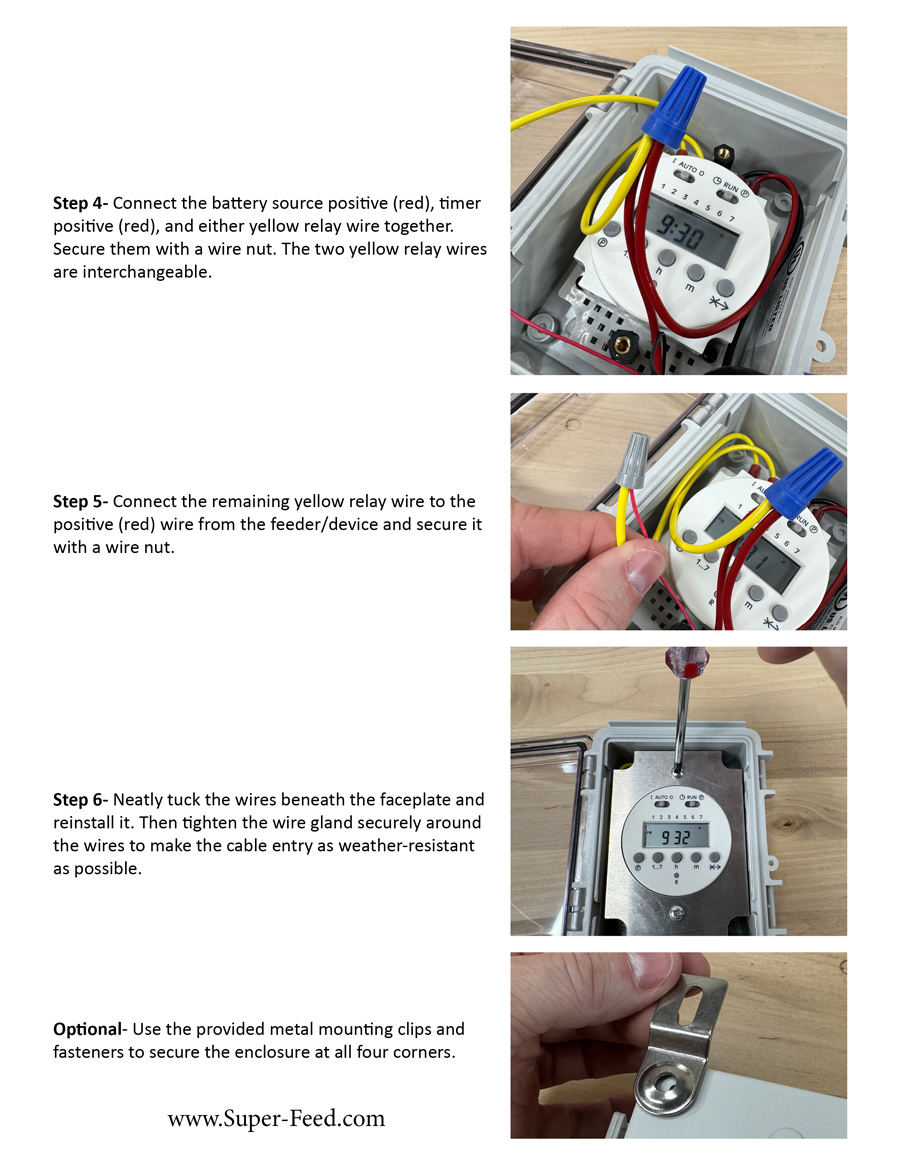

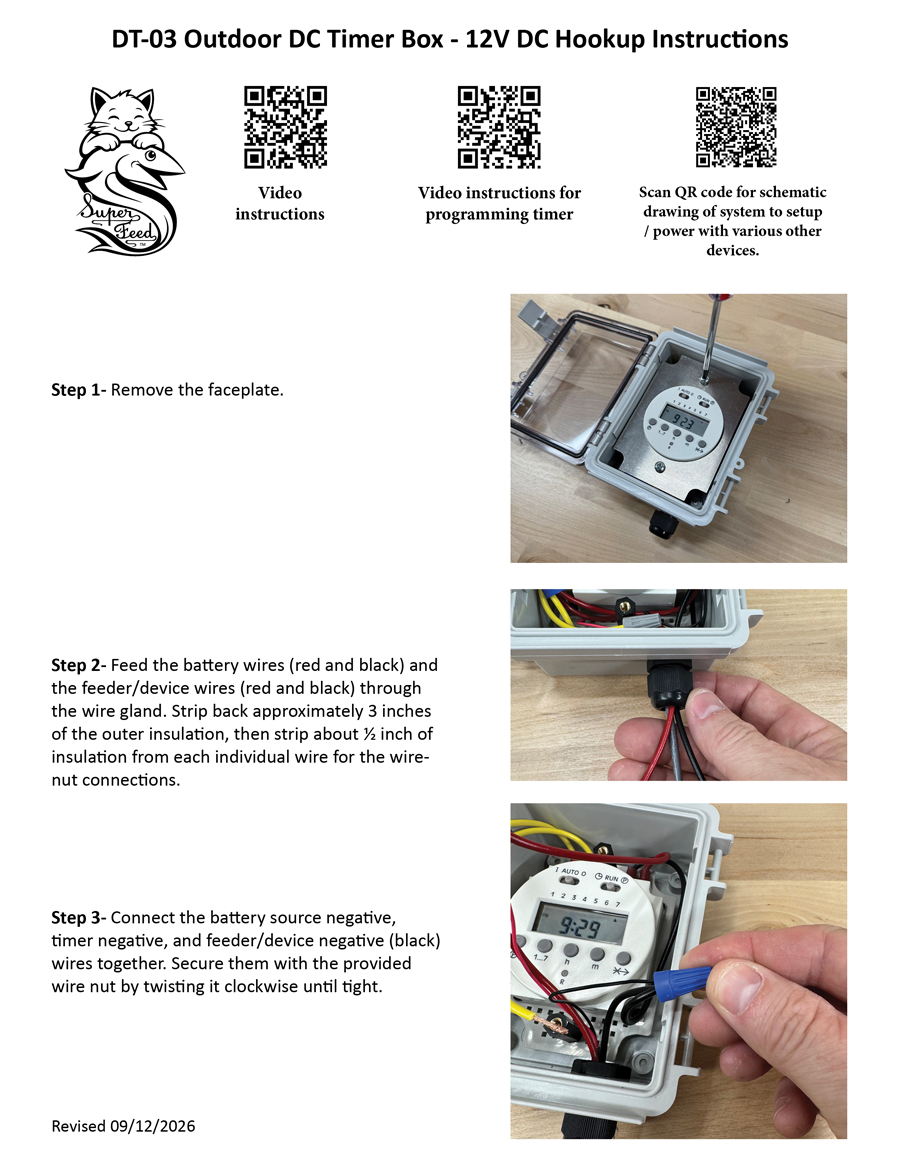

DT-03 Timer Instructions & Video

Download the pdf version

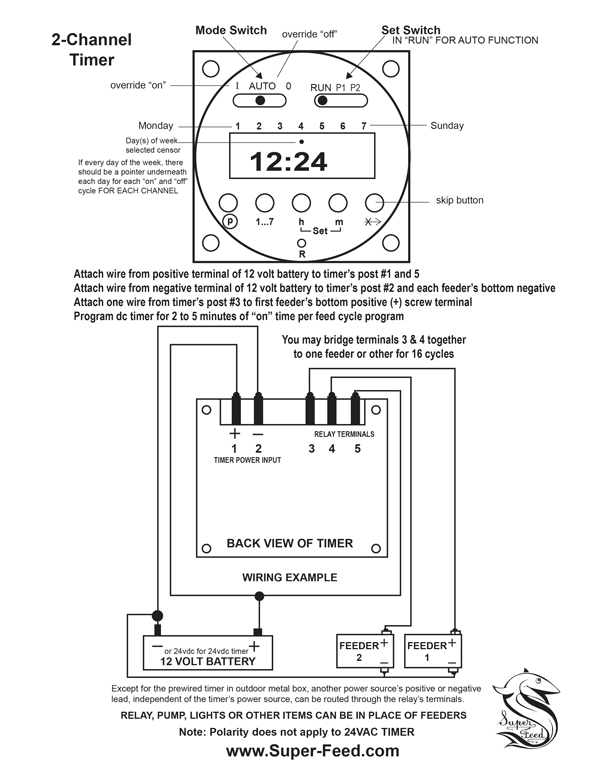

DT-04 2 channel setting instructions DT-04 2 channel setup instructions for DC timer


Detailed video showing set-up instructions for DT-03




DT-04 Two-Channel Timer Instructions Hook-up

Download the pdf version

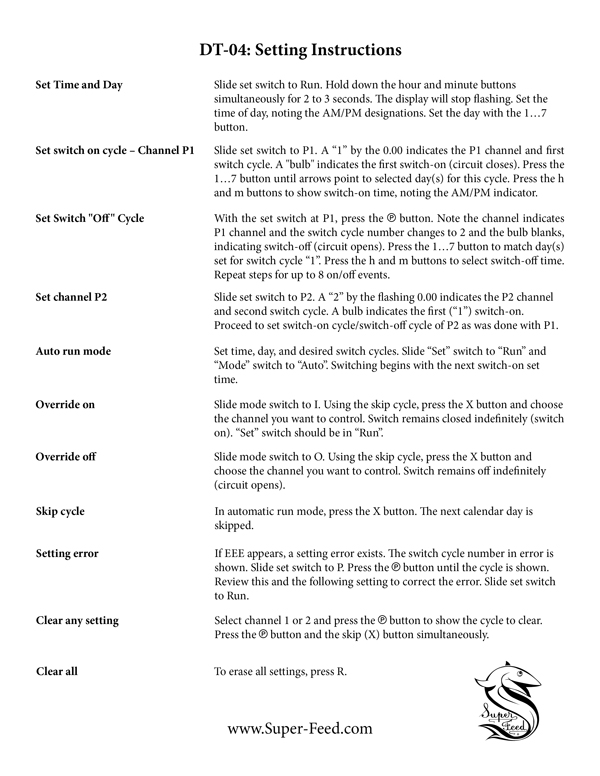

DT-04 2 channel setting instructions DT-04 2 channel setup instructions for DC timer
